ADSS-CSR Cable Storage Rack Fiber Optic Cable Fittings

DA-ADSS-CSR Cable Storage Rack

Dawnergy Telecom’s DA-ADSS-CSR cable storage rack is used to store surplus cable.

ADSS-CSR Cable Storage Rack Fiber Optic Cable Fittings

Features

Hot dip galvanized surface treatment, against rust and corrosion
A large space meet cable minimun radius of curvature
Used on pole or tower

Specifications

Item		Parameter
Material		Flat steel (40mm width × 4mm thickness or 50mm width × 5mm thickness)
Inner Diameter (mm)		660 ± 20 (suitable cable diameter ≤14.8mm); 880 ± 20 (suitable cable diameter >14.8mm)
Surface		Hot dip galvanizing
Thickness of Galvanizing Coating (um)		≥85
Tower Mount Clamp	Material	Hot dip galvanizing flat steel
	Dimensions (mm) (W×T)	40 (W) × 4 (T) or 50 (W) × 5 (T)
Pole Mount Steel Tape	Material	Stainless steel 304
	Dimension (mm) (W×T×L)	20mm (W) × 0.7mm (T) × 1200mm (L) or 20mm (W) × 0.7mm (T) × 1500mm (L)
Model	Description
DA-ADSS-CSR-P1-D350-L1200	Used for pole and pole diameter ≤350mm; Material: hot dip galvanized flat steel, dimensions (mm): 40 (W) ×4 (T), inner diameter: 660mm (suitable cable diameter ≤14.8mm); Pole mount t12ape material: SUS304, dimensions (mm): 20 (W) ×0.7 (T) ×1200 (L)
DA-ADSS-CSR-P2-D350-L1200	Used for pole and pole diameter ≤350mm; Material: hot dip galvanized flat steel, dimensions (mm): 50 (W) ×5 (T), inner diameter: 880mm (suitable cable diameter >14.8mm); Pole mount tape material: SUS304, dimensions (mm): 20 (W) ×0.7 (T) ×1200 (L)
DA-ADSS-CSR-P1-D450-L1500	Used for pole and pole diameter ≤450mm; Material: hot dip galvanized flat steel, dimensions (mm): 40 (W) ×4 (T), inner diameter: 660mm (suitable cable diameter ≤14.8mm); Pole mount tape material: SUS304, dimensions (mm): 20 (W) ×0.7 (T) ×1500 (L)
DA-ADSS-CSR-P2-D450-L1500	Used for pole and pole diameter ≤450mm; Material: hot dip galvanized flat steel, dimensions (mm): 50 (W) ×5 (T), inner diameter: 880mm (suitable cable diameter >14.8mm); Pole mount tape material: SUS304, dimensions (mm): 20 (W) ×0.7 (T) ×1500 (L)
DA-ADSS-CSR-T1-T230	Used for tower; Material: hot dip galvanized flat steel, dimensions (mm): 40 (W) ×4 (T), inner diameter: 660mm (suitable cable diameter ≤14.8mm); Tower mount clamp material: hot dip galvanized flat steel, dimensions(mm): 40(W) × 4(T)
DA-ADSS-CSR-T2-T230	Used for tower; Material: hot dip galvanized flat steel, dimensions (mm): 50 (W) ×5 (T), inner diameter: 880mm (suitable cable diameter >14.8mm); Tower mount clamp material: hot dip galvanized flat steel, dimensions(mm): 50(W) × 5(T)

Applications

ADSS-CSR Cable Storage Rack Fiber Optic Cable Fittings

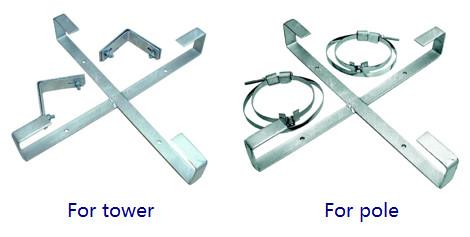

Pole mounted Tower mounted
