    Series Lead Down Clamp Fiber Optic Cable Fittings

    Ask Lasest Price
    Brand Name : Dawnergy
    Model Number : Series Lead Down Clamp
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 1000 pre day
    Delivery Time : 7~14day
    • Product Details
    • Company Profile

    Series Lead Down Clamp Fiber Optic Cable Fittings

    DA-ADSS-LDC Series Lead Down Clamp

    Dawnergy Telecom’s DA-ADSS-LDC lead down clamp is used to fasten cables on the pole or on the tower to protect them from shake and abrasion.

    Series Lead Down Clamp Fiber Optic Cable Fittings

    Features

    • Reliable, convenient and fast installation
    • Used on pole or tower
    • Electro-insulating rubber type

    Specifications

    ItemParameter
    Main MaterialTower Lead Down ClampGalvanized steel
    Pole Lead Down ClampStainless steel 304
    C Clamp Dimensions (mm) (W)*(T)40*5
    Insulated Clamping BlockYes
    Available Cable Diameter (mm)≤14.3 or 14.4~17
    Pole Mount Steel TapeMaterialStainless steel 304
    Dimension (W×T×L) (mm)

    20mm (W) × 0.5mm (T) × 1200mm (L) or

    20mm (W) × 0.5mm (T) × 1500mm (L)

    ModelDescription
    DA-ADSS-LDC-P350-D14-L1200Used for pole and pole diameter ≤350mm; Available ADSS cable diameter ≤14.3mm; Pole mount tape material: SUS304, dimensions (mm): 20 (W) × 0.5 (T) × 1200 (L)
    DA-ADSS-LDC-P350-D17-L1200Used for pole and pole diameter ≤350mm; Available ADSS cable diameter range 14.4~17mm; Pole mount tape material: SUS304, dimensions (mm): 20 (W) × 0.5 (T) × 1200 (L)
    DA-ADSS-LDC-P450-D14-L1500Used for pole and pole diameter ≤450mm; Available ADSS cable diameter ≤14.3mm; Pole mount tape material: SUS304, dimensions (mm): 20 (W) × 0.5 (T) × 1500 (L)
    DA-ADSS-LDC-P450-D17-L1500Used for pole and pole diameter ≤450mm; Available ADSS cable diameter range 14.4~17mm; Pole mount tape material: SUS304, dimensions (mm): 20 (W) × 0.5 (T) × 1500 (L)
    DA-ADSS-LDC-T20-D14Used for tower; Available ADSS cable diameter ≤14.3mm; Clamp material: galvanized steel, dimensions (mm): 40 (W) × 5 (T)
    DA-ADSS-LDC-T20-D17Used for tower; Available ADSS cable diameter range 14.4~17mm; Clamp material: galvanized steel, dimensions (mm): 40 (W) × 5 (T)

    Applications

    Series Lead Down Clamp Fiber Optic Cable FittingsSeries Lead Down Clamp Fiber Optic Cable Fittings

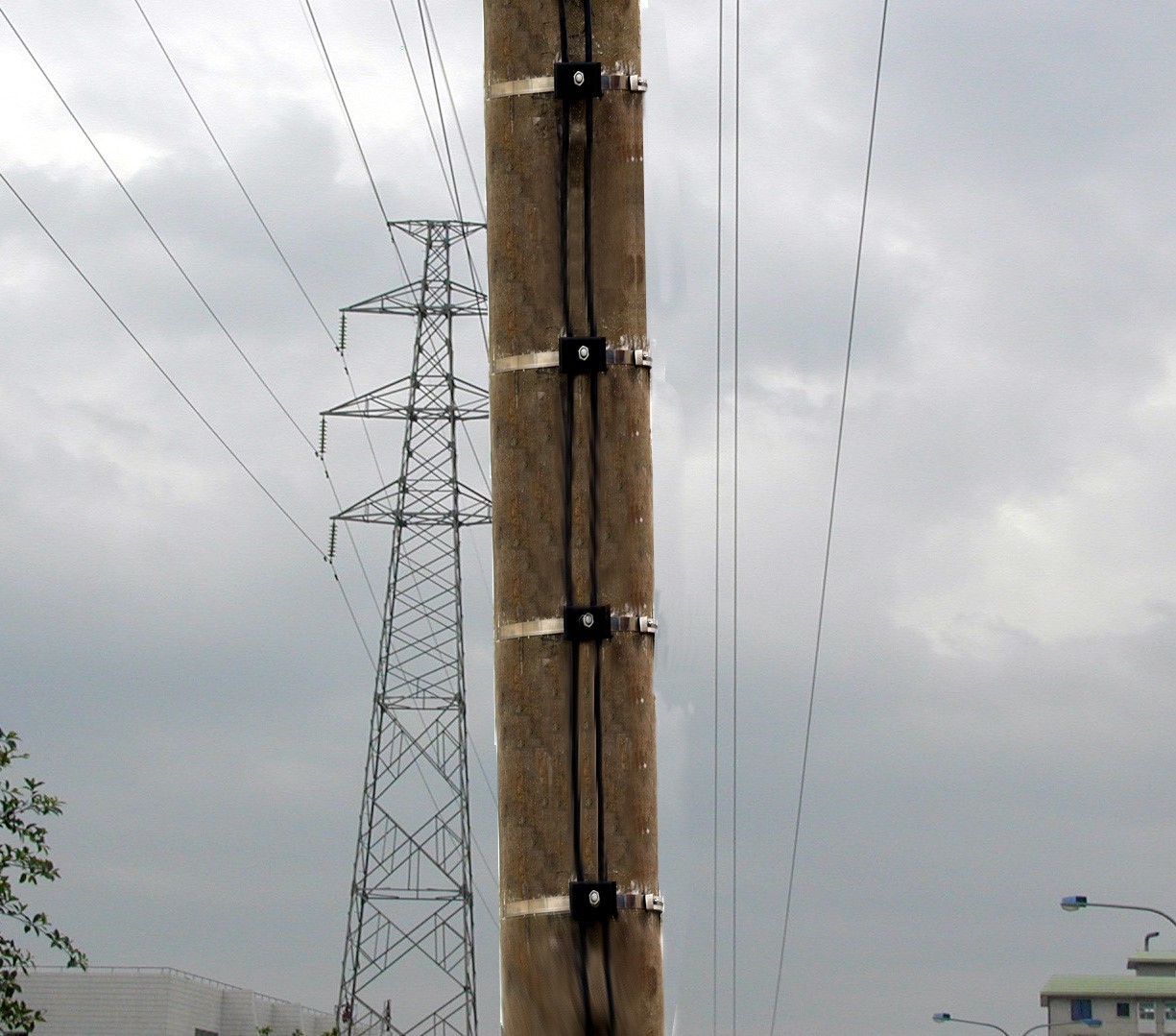

    Pole mounted

    Series Lead Down Clamp Fiber Optic Cable Fittings

    Tower mounted
